What is an APN?
Acyl peroxy nitrates, or APNs, are produced in the thermal equilibrium between organic peroxy radicals and nitrogen dioxide:

PAN equilibrium

Organic peroxy radicals are formed by the gas-phase oxidation of a variety of volatile organic compounds (VOCs); as such, the specific structure of the R group can be indicitive of the nature and origin of the VOC precursor. For example, peroxypropionyl nitrate (PPN) is primarily anthropogenic in origin, while peroxymethacryloyl nitrate (MPAN) is thought to be largely a biproduct of the oxidation of unsaturated biogenic VOCs. Peroxyacetyl nitrate (PAN), the most abundant APN, is derived from both anthropogenic and biogenic VOCs.

PAN zoo



The Role of APNs in Long-Range Transport of Pollution
Consider the following:
 - NOx (= NO + NO2), which is emitted in areas of biomass burning and fossil fuel combustion, is a key participant in the catalytic production of ozone
 - There is a growing concern that NOx emissions in a rapidly industrializing Asia are enhancing ozone production in remote regions of the Pacific Northwest
 - The lifetime of NOx in the boundary layer is on the order of a day, which is generally shorter than the timescale for venting to the free troposphere

Thus the formation of stable, insoluble NOx reservoirs determines its long range transport


APNs-LRT scheme

Some NOx is converted into the acyl peroxy nitrate reservoir, the lifetime of which increases dramatically at low temperatures. APNs, along with other long-lived pollutants like CO, can then be transported far from source regions. Upon subsidence, these airmasses warm and the APN equilibrium shifts back to the right, resulting in a release of NOx that feeds catalytic ozone production. In short, APNs act as the "transport vehicle" by which NOx travels to remote areas.

How do we measure APNs?

Our laboratory employs chemical ionization mass spectrometry (CIMS) to measure a suite of APNs present in the atmosphere. The detection scheme, based on work by Villalta and Howard (J. Phys. Chem. 1996, 100) and Slusher, et al. (J. Geophys. Res. 2004, D19315) involves three steps:
    1)Thermal dissociation of APNs into NO2 and RC(O)O2 radicals;
    2)Reaction of the peroxy radicals with iodide anions to generate RC(O)O-;
    3)Detection of these ions by a customized quadrupole mass spectrometer system.

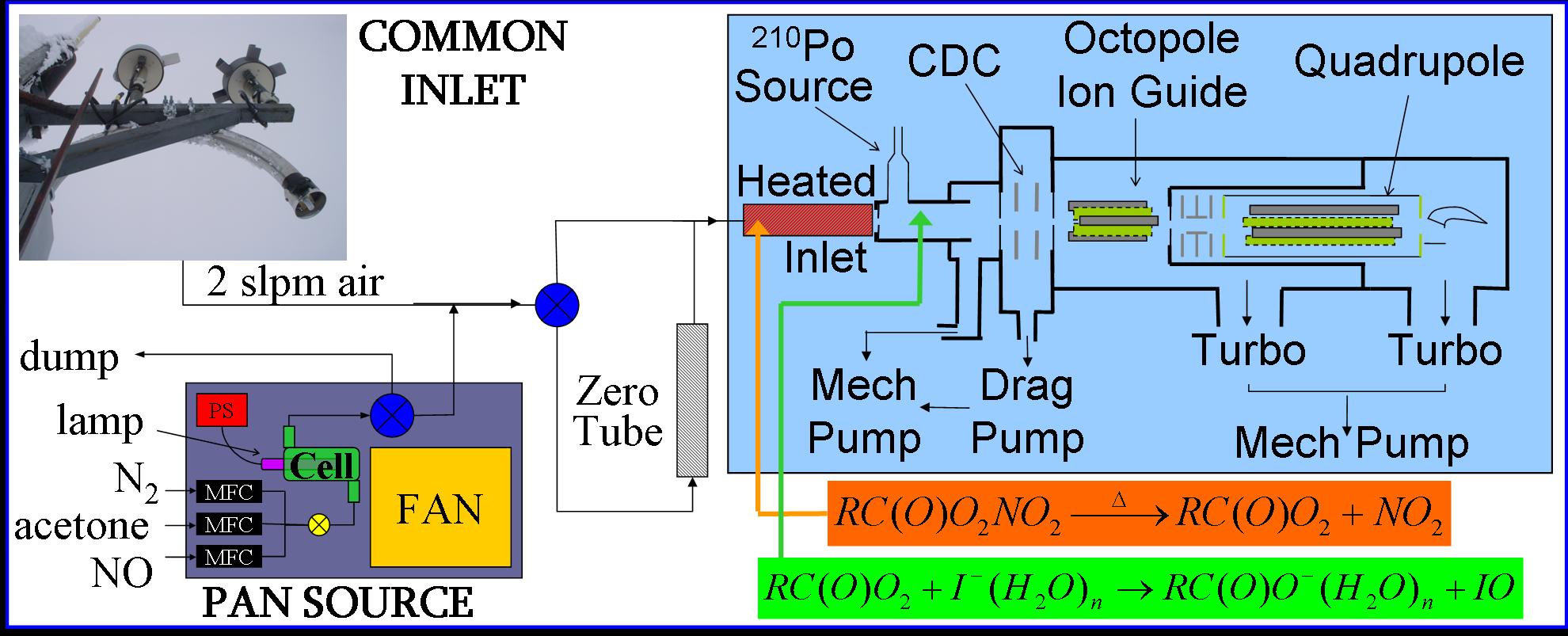

A standard field setup is shown below. Currently, the CIMS achieves a detection limit of ~5 pptv for a one-second measurement of PAN (S/N = 2).

experimental setup

Since we retain the "R" group in this scheme, the CIMS technique provides the advantage of making speciated measurements rather than just having a "sum of APNs." Such measurements can be useful for determining pollution sources, estimating the age of a pollution plume and identifying previously undetected APNs in both urban and forested areas.
